Project Scope
MCA was engaged by Newmont Mining to supply and install x 3 Ore Pass Silos. MCA Engineering was tasked with designing all temporary works to support the installation.
These works included:
- Design x 3 Ore Pass Silos 8m to 4.5 diameter

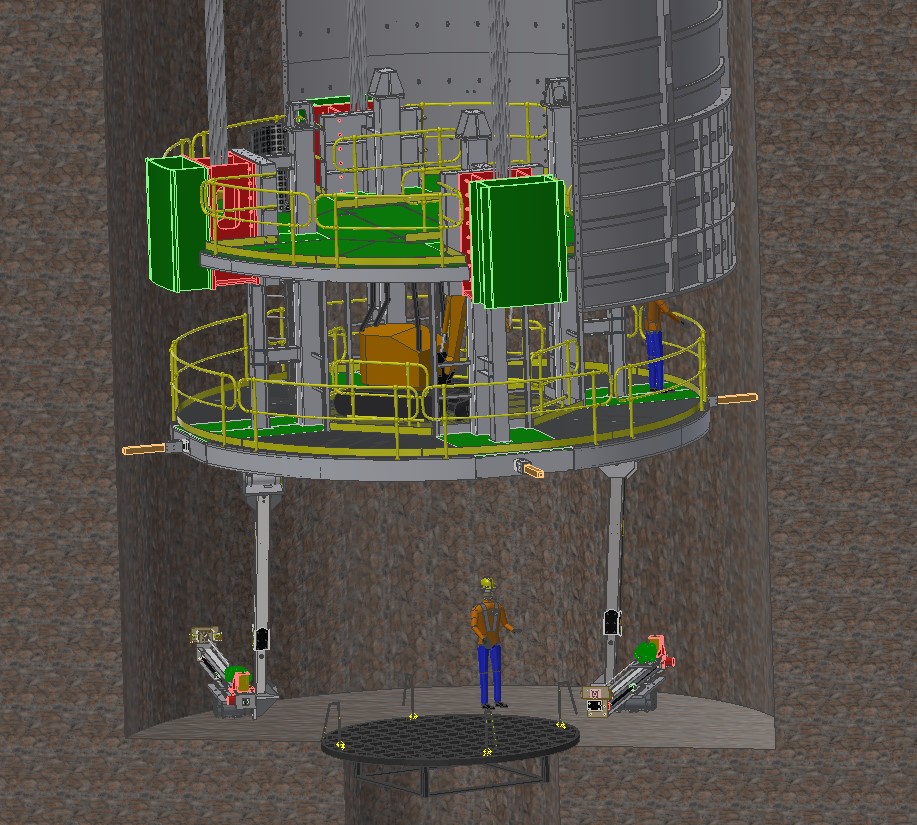

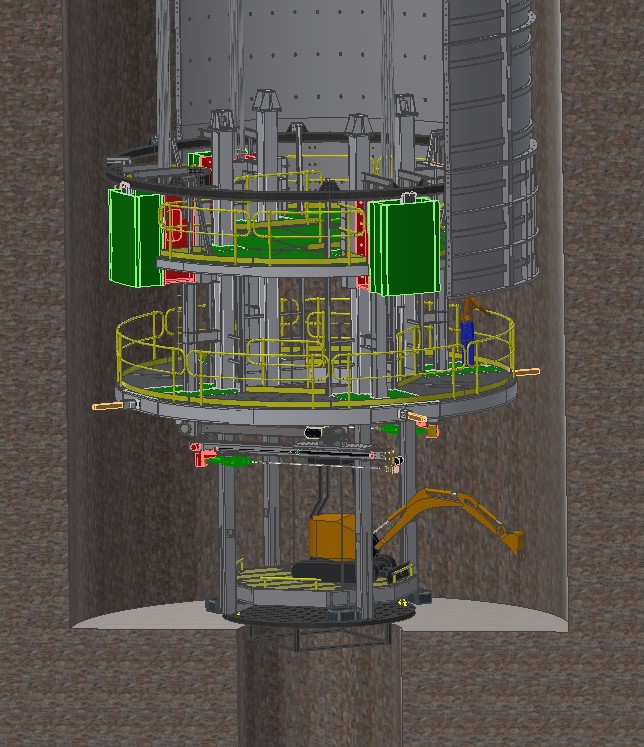

- Design a multi-deck conveyance stage to suit an 8m diameter
- Shaft conveyance through Strand Jacks

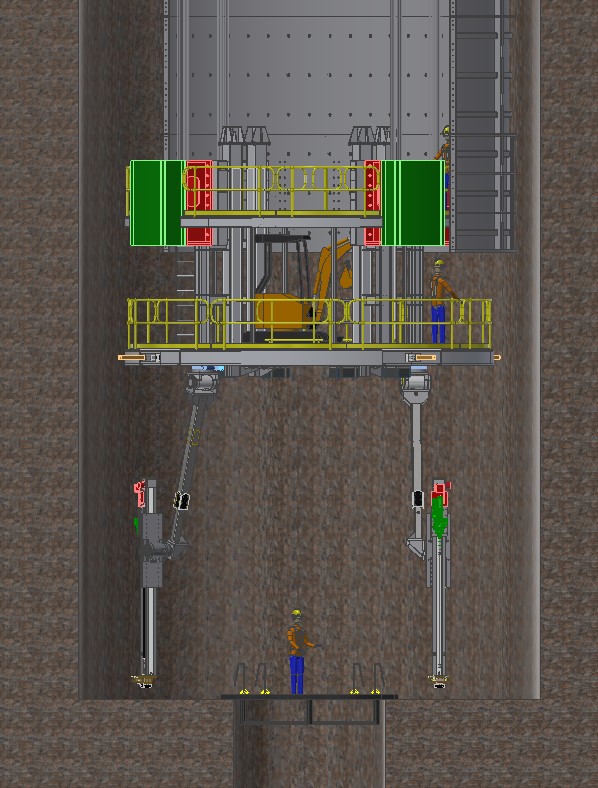

- Remote controlled twin HLX5 Rock Drills

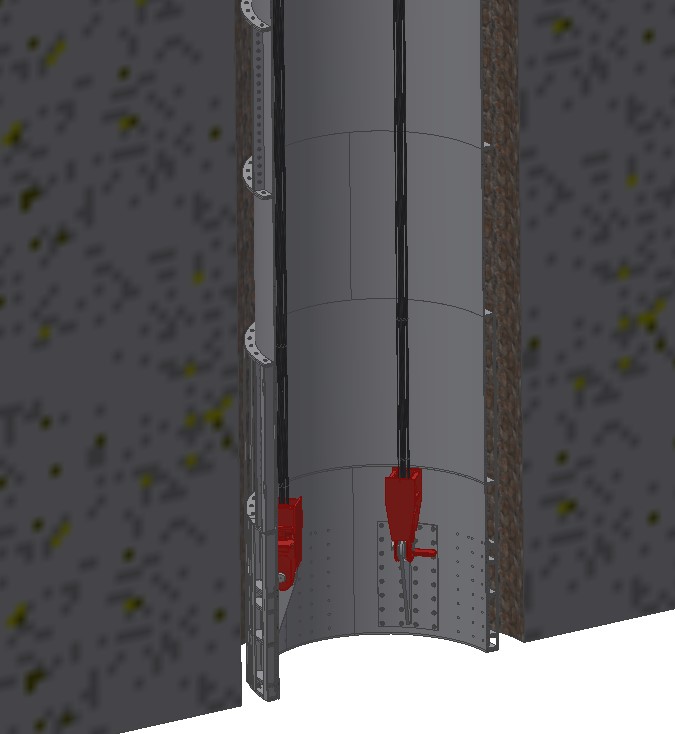

Strand Jack System

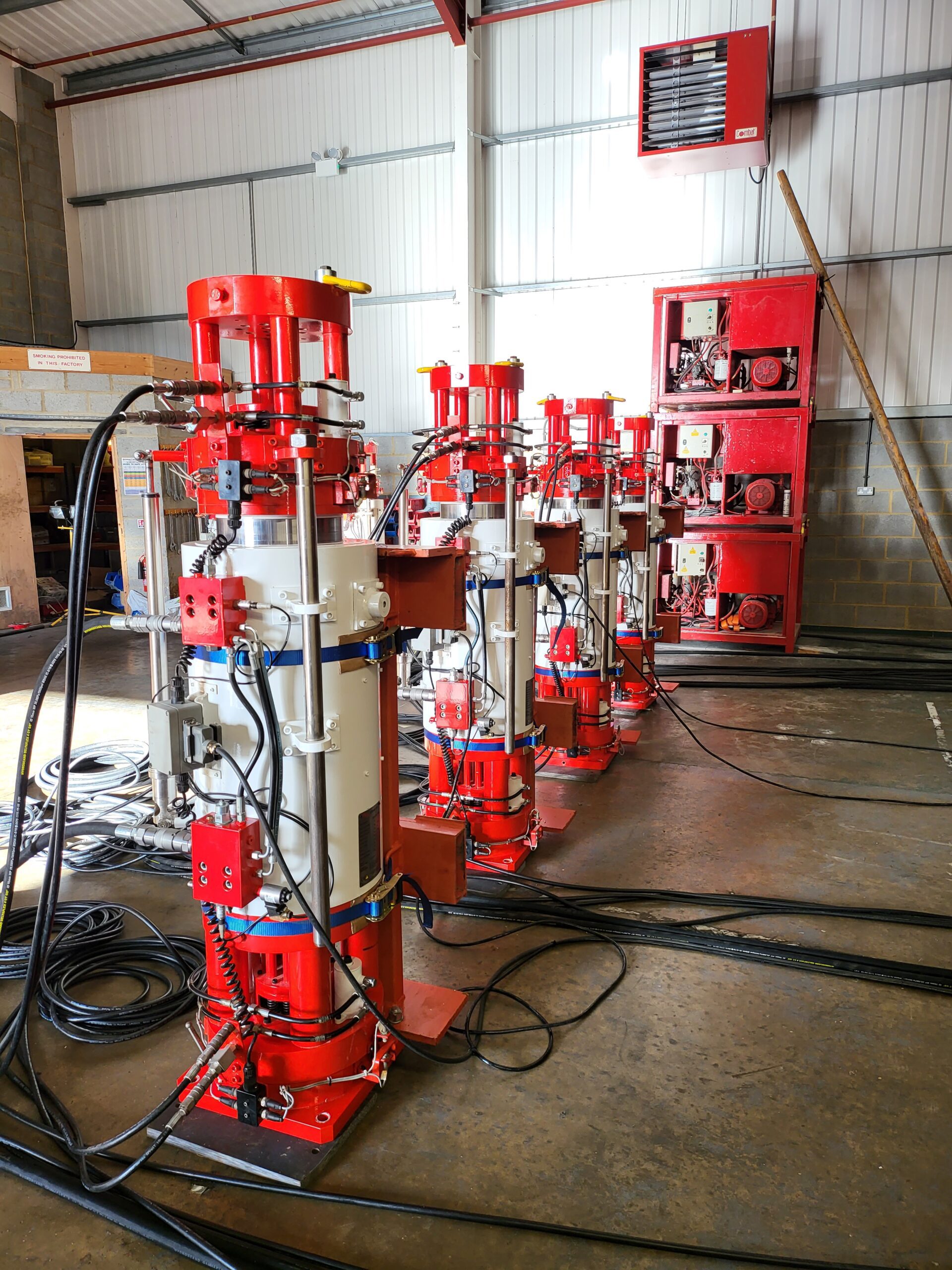

- Supply and factory Acceptance Tested S418 and S185 Strand Jack System

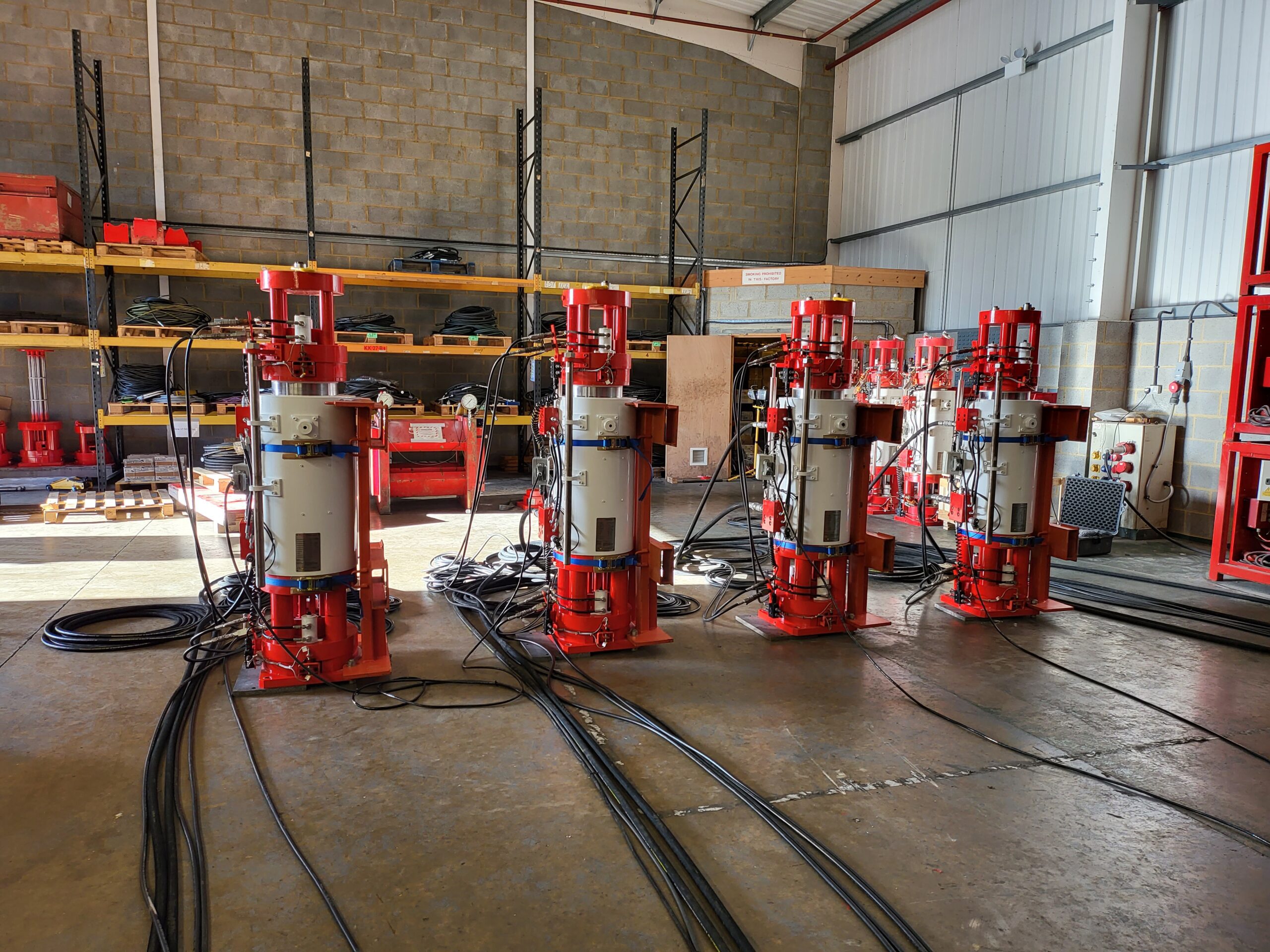

- S418 System comprised of x 4 Jacking units c/w supporting Hydraulic Power Packs
- Lifting capacity of 418 tonnes each

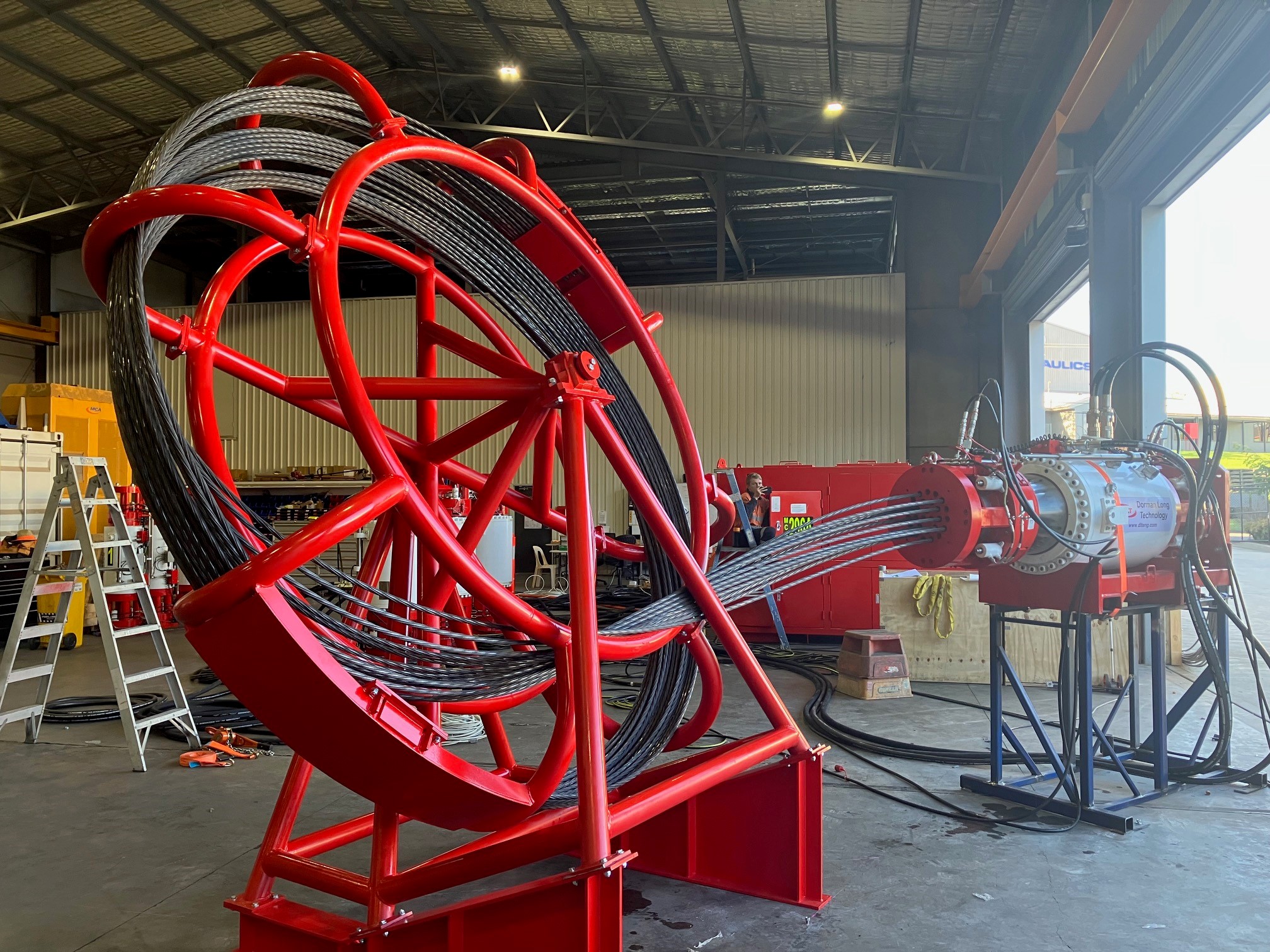

- Strand re-coilers configured to achieve a of 117 lineal meters
- S185 System comprised of x 4 Jacking units c/w supporting Hydraulic Power Packs
- Lifting capacity of 185 tonnes each
- Strand re-coilers configured to achieve a of 105 lineal meters

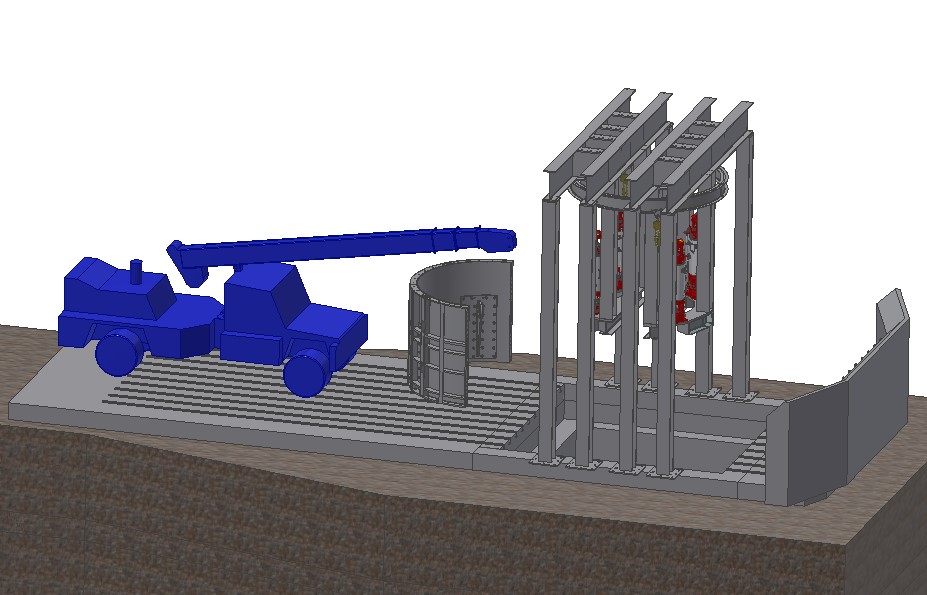

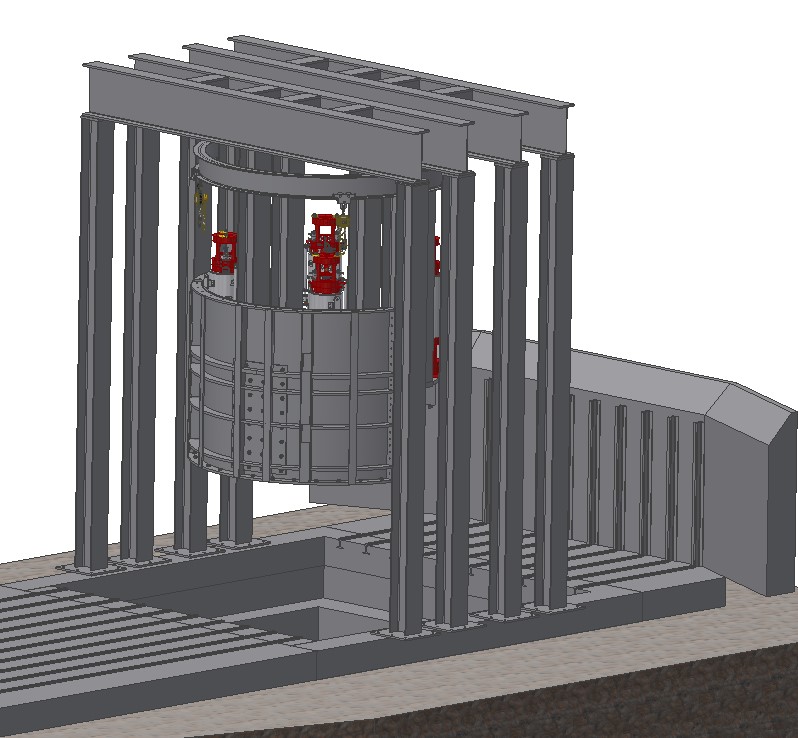

Universal Head Frame
- Designed to span from 4.5m – 8 shaft diameters
- Strand Jack Mounting configuration of both S418 or the S185 Strand Jack Systems
- Available to suspend up to 200 tonnes
Project Presentation
Download the presentation: Tanami Stage Methodology (PDF)
Work With Us
MCA offer a wide range of services including concept design studies, detailed design, fabrication and construction. For more information, please contact us to discuss how we can assist you with your next project.
Overview
Year: 2022 – 2023
Client, Project, Location:
Newmont, Tanami Silo’s Stage Design and Engineering, Tanami NT
Contact Type: Fixed Price
Role: Subcontract
Contract Value: Tanami Project was $70 million in total value however most of that cost was due to construction works. The Engineering effort demonstrated below took 8,600 man hours from concept to manufacture drawings and design validation.
